That moment when a federated model freezes the viewer thirty seconds into a coordination meeting is almost always preventable. The fix starts before you even open the file, and it comes down to how each discipline model is exported, how the federation is structured, and whether your viewer can actually handle the geometry load you're throwing at it.

TLDR:

• A federated BIM model links separate discipline files without merging them; each trade keeps its own authorship.
• Most viewers crash on large federations because they load full geometry at once, with no occlusion culling or level-of-detail management.
• Export as NWD with "May be re-saved" turned on; purge unused families and confirm coordinate alignment before federating.
• Purpose-built viewers use occlusion culling and virtualized geometry to keep memory bounded across industrial-scale models.
• Resolve loads full federated models across VR headsets, browser, and iPad, with two-way issue sync to ACC, BIM 360, Procore, and Revizto.

What a Federated BIM Model Is

A federated BIM model is not a single merged file. It is a coordinated view built from separate discipline-specific models: architectural, structural, MEP, and any other trade models brought together without losing their individual authorship or data integrity.

The ConsensusDocs 301 BIM Addendum defines a federated model as one consisting of linked but distinct component models that do not lose their identity or integrity by being so linked, where a change to one component model does not create a change in another.

That distinction matters. Each discipline team keeps working in their own file, so the federated model is always a live assembly of moving parts. Coordination tools like Navisworks pull those files together for review, and what you open in a viewer is the sum of all of them. That is exactly why viewer performance becomes a problem fast.

Why Federated Models Crash Viewers

Geometry inside a federated industrial model is dense in ways residential or commercial projects rarely are. A data center or pharma facility stacks structural steel, cable tray, ductwork, and piping across dozens of mechanical floors, with each discipline file adding its own polygon load. The combined NWD can run into multiple gigabytes before anyone opens it.

Most general-purpose viewers were not built for that scale. They load full geometry at once, with no occlusion culling to skip what the camera cannot see and no level-of-detail management to reduce polygon counts at distance. Every appended discipline file compounds the problem, producing dropped frames, long load times, or an outright crash, particularly in browser-based viewers or wireless headsets without a tethered GPU.

File Formats That Affect Viewer Performance

Not all federated model formats put the same load on a viewer. The format you export determines how much work the viewer has to do before the first frame appears.

NWD is the most reliable format for federated review. One export setting matters more than most teams realize: "May be re-saved" must be turned on when exporting from Navisworks if the file needs to be opened, federated, or re-uploaded downstream. A locked NWD without that setting will block ingestion in most third-party viewers. For RVT files linked from ACC or BIM 360, the view selection at link time controls which geometry gets pulled. Choosing a coordination view over a working view keeps file weight down.

Preparing a Federated Model Before Opening It

The gap between having a federated model and being able to open it cleanly is mostly a prep problem. A few steps before export make a real difference.

• Purge unused families and linked elements in Revit before exporting. Orphaned families inflate file size without contributing anything to the review.
• Set detail levels and view templates to match coordination intent. A fine-detail view with full MEP families exports far heavier than a medium-detail coordination view covering the same area.
• For large campus-scale projects, split the federation into zone-based NWC files instead of one monolithic NWD. Multiple smaller files can be appended into Navisworks selectively, so reviewers load only the area relevant to that session.
• Confirm coordinate alignment across all discipline models before federating. Misaligned models that open in separate locations are a common federated BIM problem, and realigning them after the fact inside a viewer wastes meeting time.

The VDC engineer or BIM coordinator running the session owns these steps. Getting them right before the link is set up means no one is troubleshooting a frozen screen mid-review.

Graphics Architecture: What Separates Capable Viewers from Limited Ones

The graphics approach a viewer uses determines whether a large federation opens cleanly or locks up. Most lightweight viewers load the full mesh into GPU memory before drawing anything to screen. On consumer hardware or a wireless headset, that ceiling is low, and a multi-gigabyte federation hits it fast.

Two techniques separate purpose-built coordination viewers from general-purpose ones:

• Occlusion culling discards geometry the camera cannot currently see, so the GPU only processes what is in frame, instead of holding the entire scene in memory.
• Virtualized geometry goes further by streaming in geometric detail based on proximity and view angle, keeping memory usage bounded regardless of total model size.

For large federated models, these are practical requirements. A viewer without them will drop frames or crash under industrial-scale geometry loads, regardless of what the marketing page says.

Cross-Device Review: VR, Web, and iPad Together

Cross-device review means the VR headset user is not the only one in the model. A superintendent walks a mechanical floor at human scale while trade partners join from a browser and a project manager follows along on iPad, all seeing the same model in real time, with no download required for web or tablet participants. BIM review in VR removes the single-presenter bottleneck.

The coordination value is specific: it removes the single-presenter bottleneck. When one person drives the screen-share, everyone else sits passive. When participants can move through the model independently or follow a live session from their own device, feedback volume goes up and review time goes down.

When assessing whether a viewer supports this, check for:

• Live presence across device types, beyond shared links
• A "follow" mode so web and iPad users can trail the VR user's position
• Guest access via browser without account creation or software installation
• Annotation and issue creation available on all device types, including web and tablet

If any of those are missing, the multi-device setup collapses back into a screen-share.

Federated Model Access Without a BIM Expert

The people who catch the most consequential issues in a federated model review, facilities managers, superintendents, owner representatives, have never opened Navisworks. They lack the license, the training, and the time to learn a coordination tool before a meeting. The result is passive walkthroughs where a BIM engineer drives and everyone else watches.

Browser-based viewers with shareable links remove the installation barrier. No account setup, no software download, open the link and you are in the model. That alone expands BIM model access for non-experts.

Their contribution matters. Poor design and documentation are a leading driver of the 177 billion dollars in annual US construction rework costs. Running BIM clash detection early is one of the clearest ways to reduce that number. Getting facilities staff into the model early catches access and maintainability issues before decisions lock.

Issue Tracking and Federated Model Review

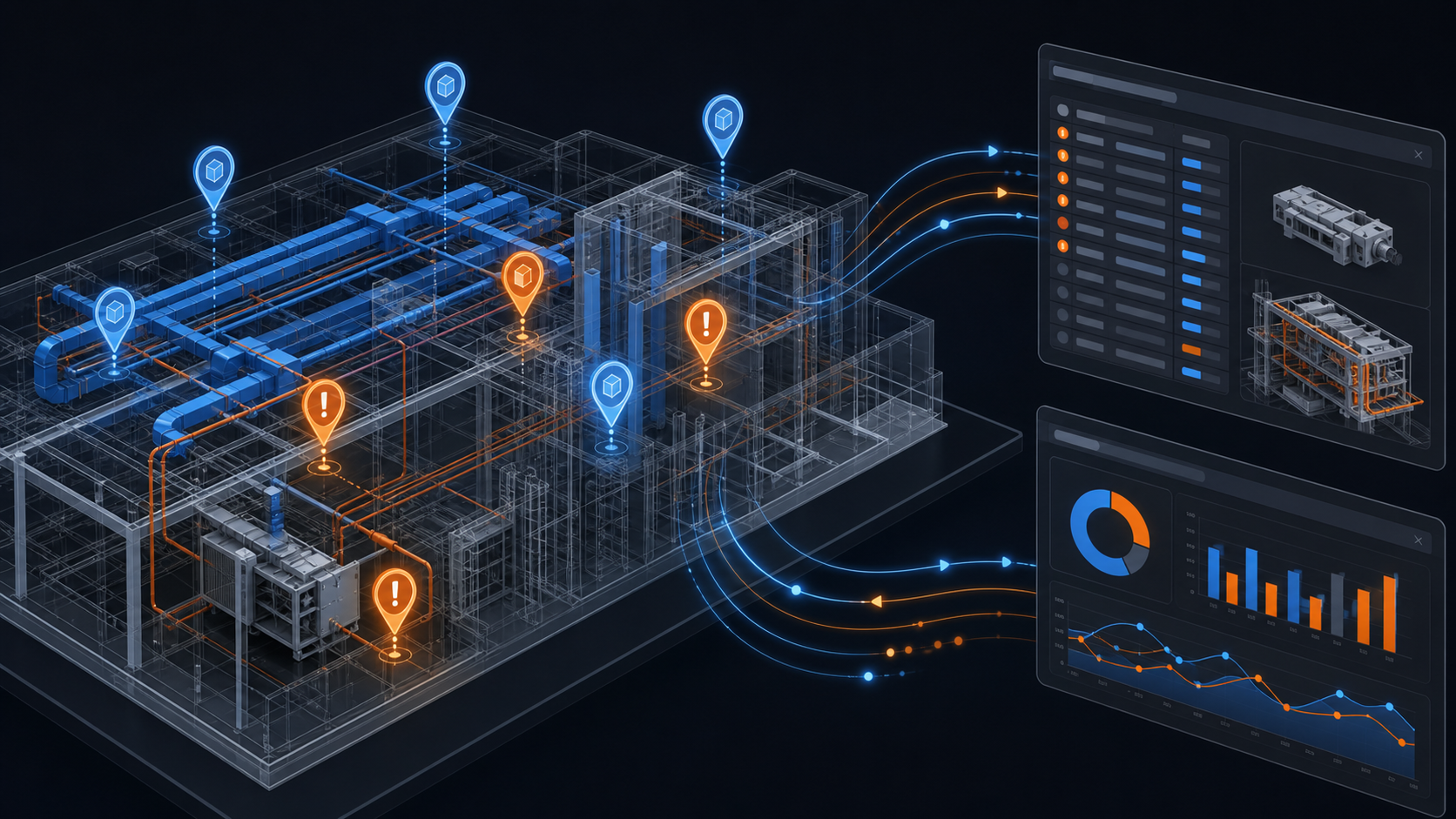

Annotations created during a federated model review are only useful if they land somewhere the project team already works. A separate issue log that lives inside the viewer and nowhere else adds noise.

Two-way sync with tools like Autodesk ACC, BIM 360, Procore, and Revizto closes that gap. Issues created during review push to the connected CDE automatically, and status changes made in the CDE reflect back in the viewer without a manual update. For a VDC coordinator managing BIM collaboration and coordination across structural, mechanical, and electrical teams, that removes a reconciliation step that would otherwise happen by hand after every session.

The other piece that matters: clicking an issue and jumping directly to its location in the model. A list of issue numbers means nothing without spatial context. Being able to land at the exact spot, across any device in the session, is what makes issue review during a coordination meeting workable.

Resolve on Large Federated Models, Every Device

Resolve's Wellington Engine runs virtualized geometry with custom occlusion culling, compiled to Vulkan, WebGPU, and Metal graphics pipelines. Full federated models load on wireless standalone Meta Quest headsets, in the browser without a download, and on iPad in the field. Resolve has supported over $50B in construction projects across those devices.

Model links connect directly to Autodesk ACC, BIM 360, Procore, and Navisworks NWD/NWF files, supporting the full MEP coordination process in BIM. Issues sync two ways with ACC, BIM 360, Procore, and Revizto, so annotations created in VR or the browser land in the CDE automatically.

AI Spatial Assist closes the navigation gap for non-specialists. Plain-language queries return direct teleports to the right model location, so facilities managers and superintendents contribute feedback without waiting for a BIM engineer to guide them.

Choosing the Right Federated BIM Model Viewer

Your federated model is only useful if your team can open it, move through it, and act on what they find. The gap between a model that loads and one that crashes is usually a combination of export choices, detail settings, and a viewer that was not built for industrial-scale geometry. Getting the right prep steps in place before the session, and picking a viewer with the graphics architecture to match, changes what your coordination reviews can accomplish. Start a free trial and see how your federated models run across VR, browser, and iPad.
